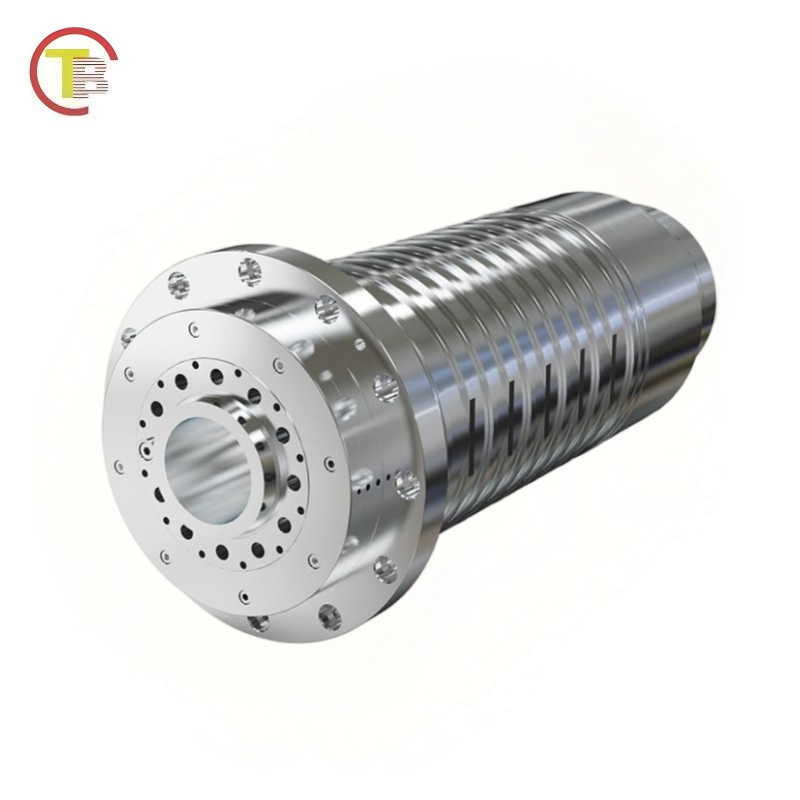

| A206 | |
| Rated power (kW) | 22 |
| Rated current(A) | 43 |
| Rated torque(N.m) | 105 |
| Rated speed(rpm) | 2000 |
| Max.speed(rpm) | 4000 |
| Type of motor | Synchronous |
| Pole number | 8 |
| Lubrication | Grease |
| Type of cooling | Liquid cooling |
| Chuck coupling | A2-6 |
| External coneaccuracy(mm) | 0.003 |
| Through hole(mm) | 67 |
| Brake | OPTIONAL |
| Positioningaccuracy(") | 60/±7.5 |
| Weight(kg) | 174 |
